Product name: Control box/Controller/Adapter/Control unit

Application  Homecare bed/Medical bed/Hi-Low bed/Electric chair/Electric sofa/Other smart furniture

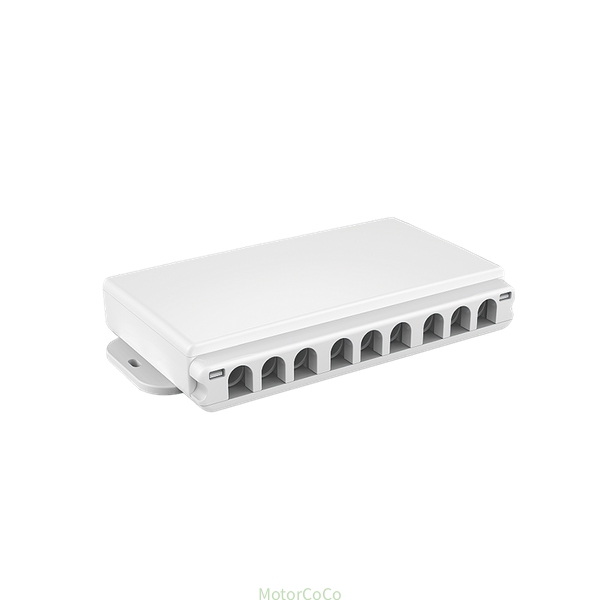

OK-C6P is mainly used in the medical and nursing care application.It is equipped with power supply,safe and stable,which can be connected with a hand remote controller,five or six actuators and a battery.It is an elegant appearance and compact design. The fixed sliding block of the lower housing can be locked to the platform by screws.

Mains voltage: 110-240 V AC 50-60 Hz  version Output voltage 24VDC

Extremely compact design

Max 5 channel,Compatible with up to 5 or 6 pcs OK series linear actuators,with normal 4 pins cable connector

Inner software with customized functionalities

Electronic Overload Protection,extend lifetime

Protection class  IP54

Color  Grey or black

2.5M fixed straight mains cable,EU,UK,US,AU standard plug

Locking mechanism for actuator plugs and mains cable

Duty cycle 10%,max 2 mins continuous use,18mins rest,not in use.

Work temperature -26 degree to 50 degree.

CE certificate

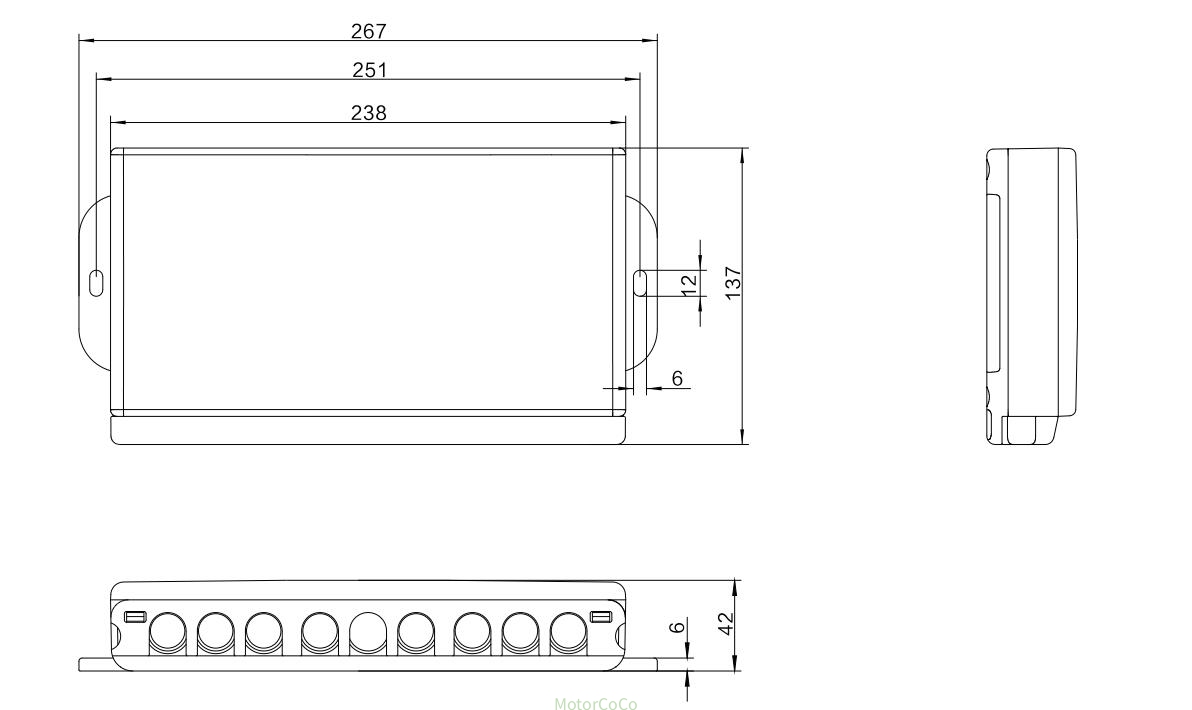

Drawing
