DC speed controller is a device used to control the speed of a DC motor. It regulates the voltage or current supplied to the motor, thereby controlling its speed.

These controllers can be used in applications like robotics, industrial machinery, and automobiles to achieve precise speed control of DC motors. This DC Speed Controller allows you to control the speed of an actuator by rotation of a control knob. The unit will not increase the speed of the actuator, but will control the speed from the maximum rated speed to zero. This DC speed controller is rated for 20A. This is compatible with all of our actuator models and can be combined with rocker switch. Some features include reverse polarity, high current protection and high efficiency.

DC10-60V DC motor speed regulator 12V 24V 36V 48V High power drive module PWM Motor speed controller 20A current regulator Operating voltage: DC 10V-60V

Output Current: 0 to 20A.

Frequency:25KHz.

Continuous power:Max 1200W

Speed range: Motor zero speed to maximum motor speed

The maximum current up to 20A radiator or heat required to increase the fan

Material: Plastic,metal

Size (L*W*H):76mm*44mm*26mm

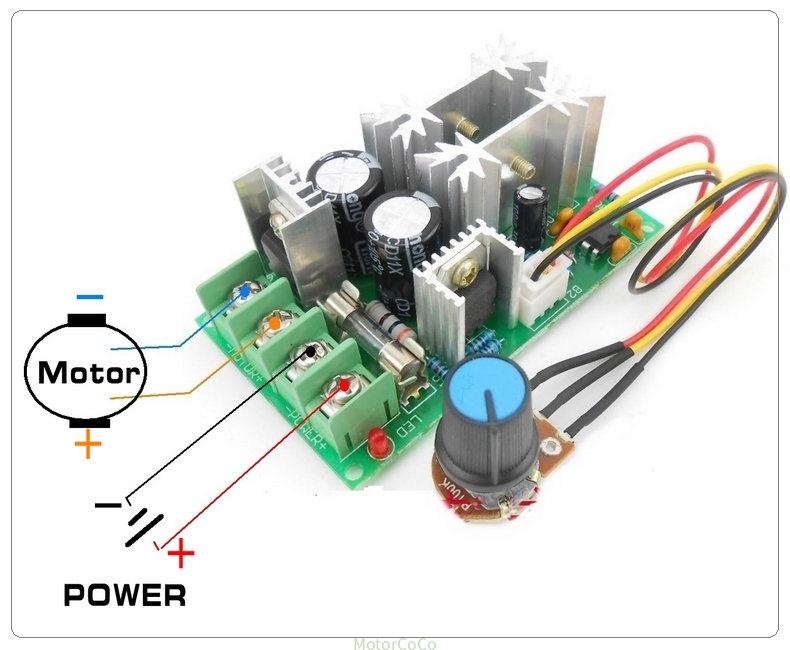

Drawing
