LA-T55
Dia 55mm,230mm/s speed,200N,with limited switch,customized
Dia 55mm,230mm/s speed,200N,with limited switch,customized
Advantage

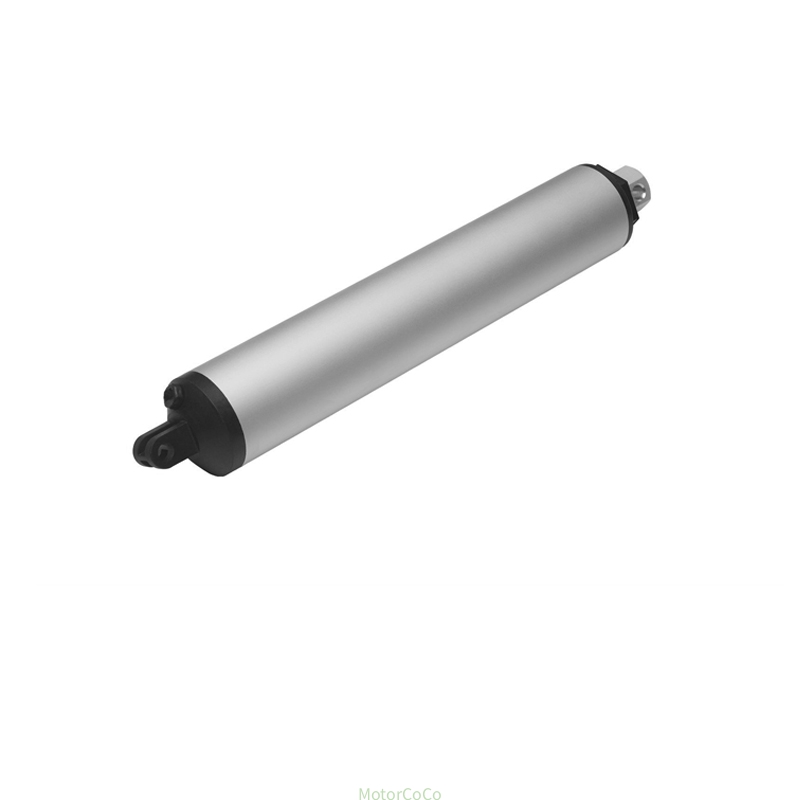

LA-T55 is fast speed tubular linear actuator,the load is 200N/20KG/44LBS,with 230mm/s 9.58inch/s high speed.
For full specifications,customization options,and dimension,please check linear actuator descripation or contact with our online engineer service.
Main technical data
| Model | LA-T55 |
| Input | 12V,24V,36V,48V DC |
| Load/Force/Thrust | Max 200N/20KG/44LBS,customized |
| Speed | Max 230mm/s,9.58inch/s,customized |
| Stroke | Max 2000mm,80inch,customized |
| Limited switch | Build in,customized |
| Position signal feedback | Hall sensor,customized |
| Duty cycle | 25% |
| IP protection | IP65 IP66 or customized |
| Operation Temperature | -25°C to 65°C (-13°F to 149°F) |
| Color | Silver |
| Controller | Power supply,wire or wireless switch,synchronous controller options |
| Mounting bracket | Standard type or customized |
| Certificate | CE,Rohs,ISO,UL |
Gear Ration&Load&Speed&Current
| Gear Ration | Max Force/Load N | Noload speed MM/S | 12V max current A | 24V max current A | Customized |
| A | 200N/20KG/44LBS | 40 | 9.0 | 4.5 | Yes |
| B | 150N/15KG/33LBS | 90 | 8.8 | 4.4 | Yes |
| C | 100N/10KG/22LBS | 140 | 8.8 | 4.4 | Yes |
| D | 50N/5KG/11LBS | 230 | 9.0 | 4.5 | Yes |

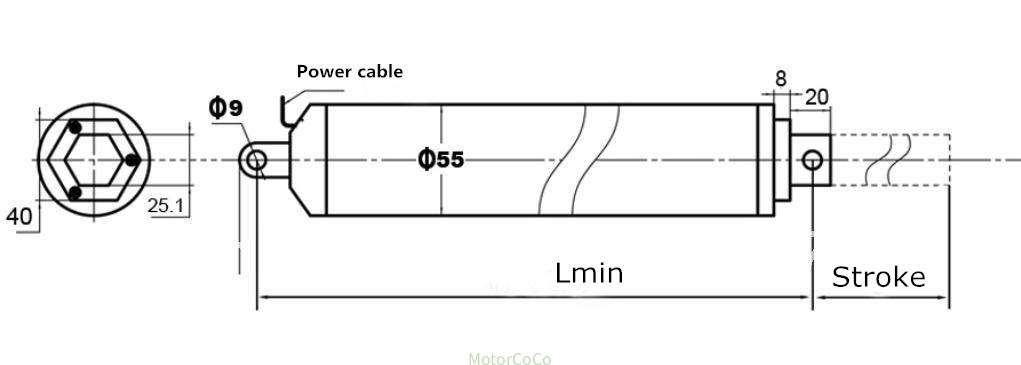

Drawing
Head and tail connector customized options
FAQ
Lmin means when the linear actuator completely retracts,the length between the front hole and rear hole.
Lmin=235mm/9.4inch+Stroke. For example 50mm stroke,Lmin=235+50=285mm=11.4inch
Lmax means when the linear actuator completely extends,the length between the front hole and rear hole.
Lmax=Lmin+Stroke For example 50mm stroke,Lmax=285+50=335mm=13.4inch
There is two pcs cable,one is + and another one is -. If the power+ connects cable +,power- connects cable-,the linear actuator will extend,If the power+ connects cable -,power- connects cable +,the linear actuator will retract.
If customers want customized front and rear mounting hole size,Lmin and Lmax size,mounting degree or direction,please send technical data.
General question
1 Can you make customized stroke,Lmin,Lmax length? Yes,but we need drawing.
2 Can you make head connector with customized slot or fish eyes? Yes,but we need drawing.
3 Can you adjust end rear with 90 degree? Yes.
4 Can you make customzied cable connector? Yes,but we need connector photo or size.
5 Can you provide power supply or adapter or remote controller or syncrounously controller? Yes,we have wire and wireless types controller.
6 Can you provide mounting bracket? Yes.
7 Can you offer OEM serive？Yes.
How to place customized order
A Product model Number (For example LA-T20,T30,T338,T60 or other model)
B Input (6V or 12V or 24V or 36V or 48V)
C Noload speed (For example 5mm/s or 50mm/s or 230mm/s or other speed)
D Load (For example 1000N/100KG/220LBS or 5000N/500KG/1100LBS or other load)
E Stroke length (For example 2inch,50mm,4inch,100mm or other length)
F Retract length (For example 155mm or 205mm or other length)
G Cable length (For example 1M or 1.5M or other length)
H Other customized technical requirements
