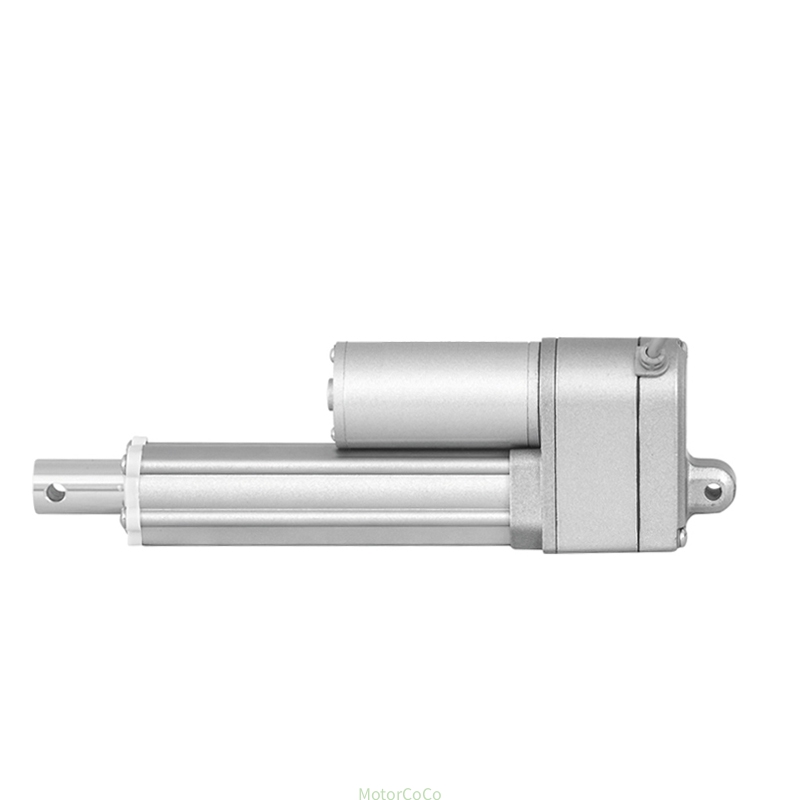

160mm/s,1200N/120KG/264LBS load,potentiometer position feedback,customized
Advantage
The built-in potentiometer allows for position control. It provides positional feedback based on resistance changes. This feature is important to applications that require precision. Linear actuator is with potentiometer and uses a three wire cable to generate its resistance technical data.
A linear actuator with a potentiometer typically refers to a type of actuator that has a built-in potentiometer for position feedback. This allows for precise control and monitoring of the actuator’s position. The potentiometer provides an analog voltage signal proportional to the actuator’s position, enabling you to accurately determine its location. This setup is commonly used in various applications such as robotics, industrial automation, and motion control systems.
For full specifications,customization options,and dimension,please check linear actuator descripation or contact with our online engineer service.
Main technical data
| Model | LA-T6P |
| Input | 12V,24V,36V,48V DC |
| Load/Force/Thrust | Max 1200N/120KG/264LBS,customized |
| Speed | Max 160mm/s,6.4inch/s,customized |
| Stroke | Max 1000mm,40inch,customized |
| Limited switch | Build in,customized |
| Position signal feedback | Potentiometer/Hall sensor |
| Gear material | Metal |
| Duty cycle | 25% |
| IP protection | IP54,IP65 or customized |
| Operation Temperature | -25°C to 65°C (-13°F to 149°F) |
| Color | Black or Silver |
| Controller | Power supply,wire or wireless switch,synchronous controller options |
| Mounting bracket | Standard type or customized |
| Certificate | CE,Rohs,ISO,UL |
Gear Ration&Load&Speed&Current
| Gear Ration | Max Force/Load N | Noload speed MM/S | 12V max current A | 24V max current A | Customized |
| A | 1200N/120KG/264LBS | 6 | 5.0 | 2.5 | Yes |
| B1 | 1000N/100KG/220LBS | 10 | 5.0 | 2.5 | Yes |
| B2 | 750N/150KG/330LBS | 12 | 5.0 | 2.5 | Yes |
| C | 500N/500KG/110LBS | 15 | 4.8 | 2.5 | Yes |
| D | 450N/100KG/220LBS | 20 | 4.8 | 2.5 | Yes |
| E | 400N/40KG/88LBS | 30/40 | 4.8 | 2.5 | Yes |
| F | 300N/30KG/66LBS | 50 | 4.8 | 2.5 | Yes |
| G | 200N/20KG/44LBS | 65 | 4.8 | 2.4 | Yes |
| H | 100N/10KG/22LBS | 100 | 4.8 | 2.4 | Yes |
| I | 50N/5KG/11LBS | 150 | 4.8 | 2.4 | Yes |

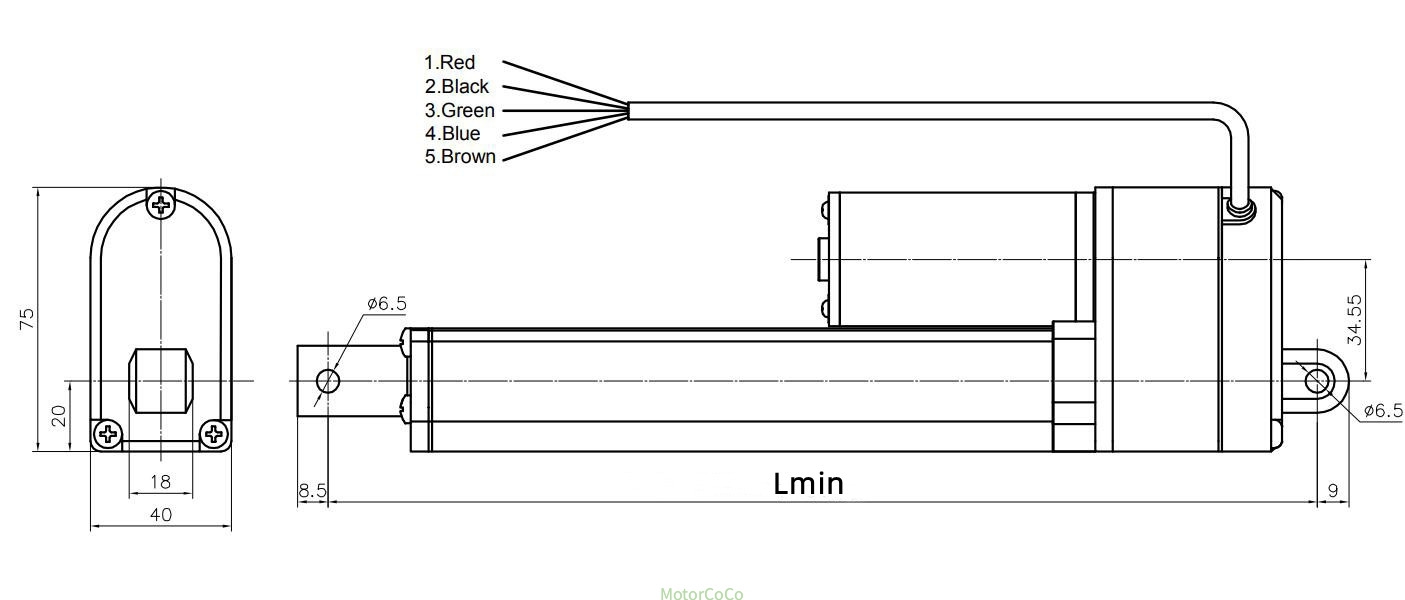

Drawing
Head and tail connector options
FAQ
Lmin means when the linear actuator completely retracts,the length between the front hole and rear hole.
Lmin=135/140mm/5.6inch+Stroke. For example 50mm stroke,Lmin=135/140+50=185/190mm=7.4/7.6inch
Lmax means when the linear actuator completely extends,the length between the front hole and rear hole.
Lmax=Lmin+Stroke For example 50mm stroke,Lmax=185/190+50=235/240mm=9.4/9.6inch
There is two pcs cable,one is + and another one is -. If the power+ connects cable +,power- connects cable-,the linear actuator will extend,If the power+ connects cable -,power- connects cable +,the linear actuator will retract.
If customers want customized front and rear mounting hole size,Lmin and Lmax size,mounting degree or direction,please send technical data.
General question
1 Can you make customized stroke,Lmin,Lmax length? Yes,but we need drawing.
2 Can you make head connector with customized slot or fish eyes? Yes,but we need drawing.
3 Can you adjust end rear with 90 degree? Yes.
4 Can you make customzied cable connector? Yes,but we need connector photo or size.
5 Can you provide power supply or adapter or remote controller or syncrounously controller? Yes,we have wire and wireless types controller.
6 Can you provide mounting bracket? Yes.
7 Can you offer OEM serive？Yes.
How to place customized order
A Product model Number (For example LA10P,T6P,50P or other model)
B Input (6V or 12V or 24V or 36V or 48V)
C Noload speed (For example 5mm/s or 20mm/s or 30mm/s or other speed)
D Load (For example 500N/50KG/110LBS or 1000N/100KG/220LBS or other load)
E Stroke length (For example 2inch,50mm,4inch,100mm or other length)
F Retract length (For example 155mm or 205mm or other length)
G Cable length (For example 1M or 1.5M or other length)
H Other customized technical requirements
