160mm/s,12000N/1200KG force,with Hall sensor position feedback,customized
Advantage
Magnetized Disk: Inside the motor gearbox, there's a shaft with a magnetized disk attached to it. This disk has alternating North and South poles around its circumference.
Hall Sensor Array: Positioned nearby, likely along the path of the disk's rotation,there's an array of Hall sensors. These sensors detect changes in the magnetic field as the poles of the disk pass by.
Pulse Output: Similar to before, each transition from a North pole to a South pole (or vice versa) induces a change in pulse in the Hall sensors.
Counting Poles: By counting these pulse transitions, the controller system can determine the position of the linear actuator. Each complete revolution of the magnetized disk corresponds to a certain linear displacement of the actuator. By measuring the number of revolutions and possibly considering the gear ratio, the linear position can be accurately calculated.
| Model | LA50H |
| Input | 12V,24V,36V,48V DC |
| Force/Thrust | Max 12000N/1200KG/2640LBS,customized |
| Speed | Max 160mm/s,6.4inch/s,customized |
| Stroke | Max 2000mm,80inch,customized |
| Limited switch | Build in,customized,adjustable |
| Position signal feedback | Hall sensor,customized |
| Gear | Metal |
| Duty cycle | 25% |
| IP protection | IP65 or customized |
| Operation Temperature | -20°C to 65°C or or customized |
| Color | Black |
| Controller | Power supply,wire or wireless switch,synchronous controller options |
| Mounting bracket | Standard type or customized |
| Certificate | CE,Rohs,ISO,UL |
Gear Ration&Load&Speed&Current
| Gear Ration | Max Force/Load N | Noload speed MM/S | 12V max current A | 24V max current A | Customized |
| A | 12000N/1200KG/2640LBS | 5 | 24.0 | 14.0 | Yes |
| B | 10000N/1000KG/2200LBS | 6.5 | 24.0 | 14.0 | Yes |
| C | 9000N/900KG/1980LBS | 8.5 | 20.0 | 12.0 | Yes |
| D | 7000N/700KG/1540LBS | 12.5 | 21.0 | 11.0 | Yes |
| E | 4000N/400KG/880LBS | 13 | 20.0 | 10.0 | Yes |
| F | 4000N/400KG/880LBS | 17 | 21.0 | 12.0 | Yes |
| G | 4000N/400KG/880LBS | 20 | 21.0 | 12.0 | Yes |
| H | 3000N/300KG/660LBS | 22 | 21.0 | 12.0 | Yes |
| I | 2000N/200KG/440LBS | 40 | 22.0 | 13.0 | Yes |
| J | 2000N/200KG/440LBS | 52 | 22.0 | 13.0 | Yes |
| K | 2000N/200KG/440LBS | 67 | 22.0 | 13.0 | Yes |
| L | 1500N/150KG/330LBS | 100 | 22.0 | 13.0 | Yes |
| M | 1000N/100KG/220LBS | 160 | 22.0 | 13.0 | Yes |

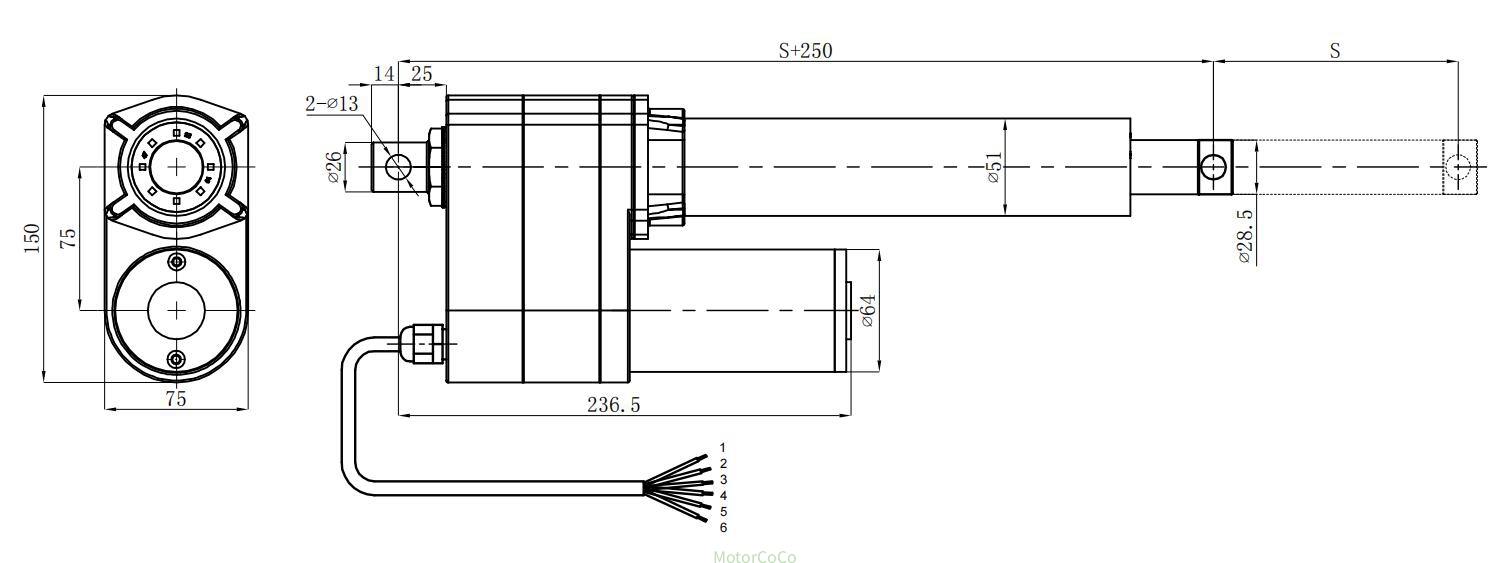

Drawing
Front and rear connector options
FAQ
Lmin means when the linear actuator completely retracts,the length between the front hole and rear hole.
Lmin=250mm/10inch+Stroke. For example 50mm stroke,Lmin=250+50=300mm=12inch
Lmax means when the linear actuator completely extends,the length between the front hole and rear hole.
Lmax=Lmin+Stroke
Lmax=Lmin+Stroke For example 50mm stroke,Lmax=300+50=350mm=14inch
There is two pcs cable,one is + and another one is -. If the power+ connects cable +,power- connects cable-,the linear actuator will extend,If the power+ connects cable -,power- connects cable +,the linear actuator will retract.
If customers want customized front and rear mounting hole size,Lmin and Lmax size,mounting degree or direction,please leave technical data.
General question
1 Can you make customized stroke,Lmin,Lmax length? Yes,but we need drawing.
2 Can you make head connector with customized slot or fish eyes? Yes,but we need drawing.
3 Can you modify end rear with 90 degree? Yes.
4 Can you make customzied cable connector? Yes,but we need connector photo or size.
5 Can you provide power supply or adapter or remote controller or syncrounously controller? Yes,we have wire and wireless types controller.
6 Can you provide mounting bracket? Yes.
7 Can you supply position signal feedback? Yes,we can supply potentiometer,hall sensor,adjustable limited switch,forward rotation and reverse rotation,Lmin and Lmax position and etc.
8 Can you offer OEM serive？Yes.
How to place customized order
A Product model Number (For example LA10H,LA50H,LA51H or other model)
B Input (6V or 12V or 24V or 36V or 48V)
C Noload speed (For example 5mm/s or 50mm/s or 230mm/s or other speed)
D Load (For example 1000N/100KG/220LBS or 5000N/500KG/1100LBS or other load)
E Stroke length (For example 2inch,50mm,4inch,100mm or other length)
F Retract length (For example 155mm or 205mm or other length)
G Cable length (For example 1M or 1.5M or other length)
H Other customized technical requirements
