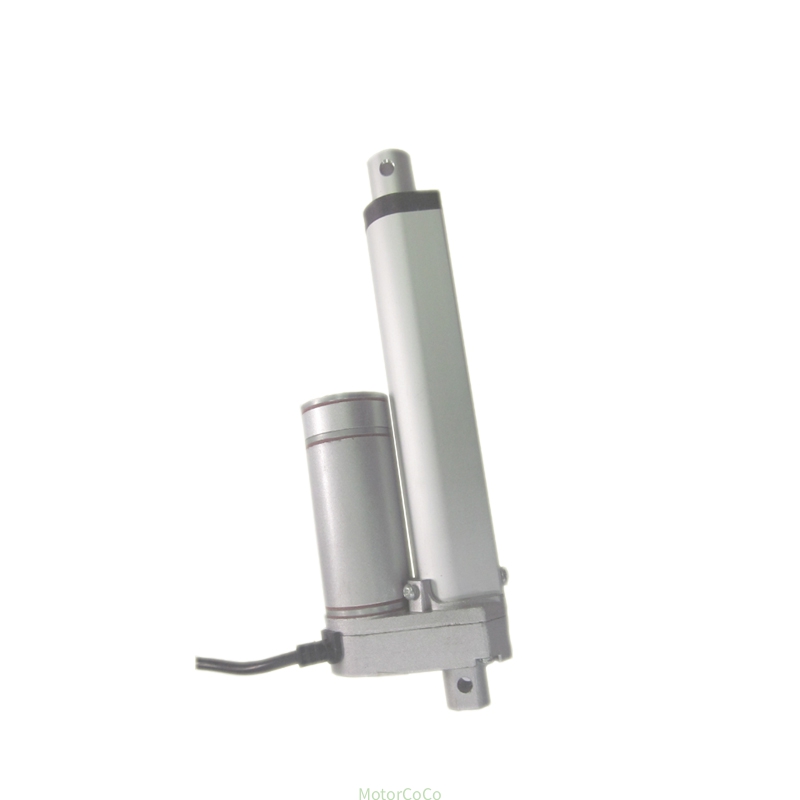

LA10E with encoder
150mm/s,900N/90KG/198LBS load,encoder position feedback,customized
150mm/s,900N/90KG/198LBS load,encoder position feedback,customized
Advantage
A photoelectric sensor is a device used to determine the distance,absence,or presence of an linear actuator by using a light transmitter,often infrared,and a photoelectric receiver. They are largely used in industrial manufacturing.
Main technical data
| Model | LA10E |
| Input | 12V,24V,36V,48V DC |
| Load/Force/Thrust | Max 900N/90KG/198LBS,customized |
| Speed | Max 150mm/s,6inch/s,customized |
| Stroke | Max 1000mm,40inch,customized |
| Limited switch | Build in,customized |
| Position signal feedback | Encoder |
| Gear material | Metal |
| Duty cycle | 25% |
| IP protection | IP54,IP65 or customized |
| Operation Temperature | -25°C to 65°C (-13°F to 149°F) |
| Color | Black or Silver |
| Controller | Power supply,wire or wireless switch,synchronous controller options |
| Mounting bracket | Standard type or customized |
| Certificate | CE,Rohs,ISO,UL |
Gear Ration&Load&Speed&Current
| Gear Ration | Max Force/Load N | Noload speed MM/S | 12V max current A | 24V max current A | Customized |
| A | 900N/90KG/198LBS | 6 | 4.2 | 2.1 | Yes |
| B | 750N/75KG/165LBS | 10 | 4.2 | 2 | Yes |
| C | 600N/60KG/132LBS | 15 | 4.2 | 2 | Yes |
| D | 450N/45KG/99LBS | 20 | 4.2 | 2 | Yes |
| E | 350N/35KG/77LBS | 25 | 4.1 | 2 | Yes |
| F | 300N/30KG/66LBS | 30 | 4.2 | 2.1 | Yes |
| G | 120N/12KG/26.4LBS | 40 | 4 | 1.9 | Yes |
| H | 100N/10KG/22LBS | 50 | 4 | 1.9 | Yes |
| I | 80N/8KG/17.6LBS | 60 | 4 | 1.9 | Yes |
| J | 50N/5KG/11LBS | 80 | 4 | 1.9 | Yes |

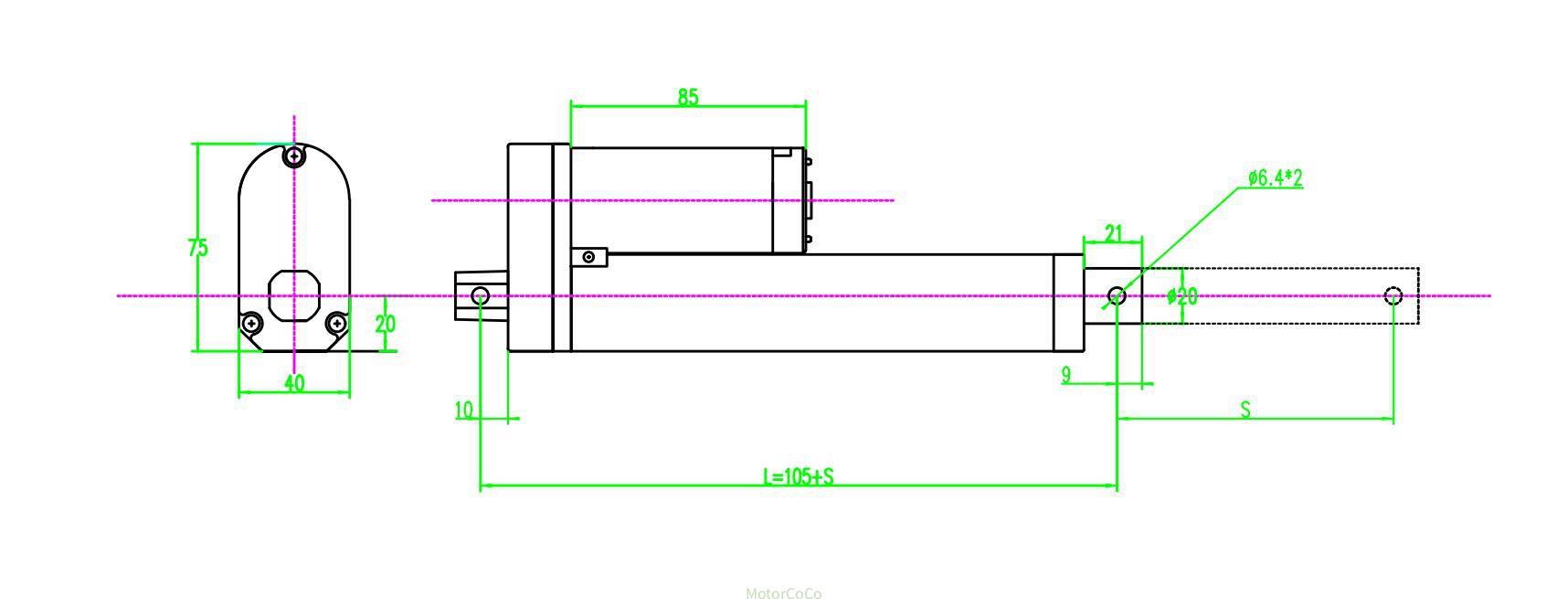

Drawing
Head and tail connector options
FAQ
Lmin means when the linear actuator completely retracts,the length between the front hole and rear hole.
Lmin=105mm/4.2inch+Stroke. For example 50mm stroke,Lmin=105+50=155mm=6.2inch
Lmax means when the linear actuator completely extends,the length between the front hole and rear hole.
Lmax=Lmin+Stroke For example 50mm stroke,Lmax=155+50=205mm=8.2inch
Wire diagram
There is 5 pcs cable. Red cable is + and black cable is -. If the power+ connects red cable +,power- connects black cable-,the linear actuator will extend,If the power+ connects black cable -,power- connects red cable +,the linear actuator will retract.
If customers want customized front and rear mounting hole size,Lmin and Lmax size,mounting degree or direction,please send technical data.
General question
1 Can you make customized stroke,Lmin,Lmax length? Yes,but we need drawing.
2 Can you make head connector with customized slot or fish eyes? Yes,but we need drawing.
3 Can you adjust end rear with 90 degree? Yes.
4 Can you make customzied cable connector? Yes,but we need connector photo or size.
5 Can you provide power supply or adapter or remote controller or syncrounously controller? Yes,we have wire and wireless types controller.
6 Can you provide mounting bracket? Yes.
7 Can you offer OEM serive？Yes.
How to place customized order
A Product model Number (For example LA10H,LA50H,LA51H or other model)
B Input (6V or 12V or 24V or 36V or 48V)
C Noload speed (For example 5mm/s or 10mm/s or 20mm/s or other speed)
D Load (For example 500N/50KG/110LBS or 700N/70KG/154LBS or other load)
E Stroke length (For example 2inch,50mm,4inch,100mm or other length)
F Retract length (For example 155mm or 205mm or other length)
G Cable length (For example 1M or 1.5M or other length)
H Other customized technical requirements
