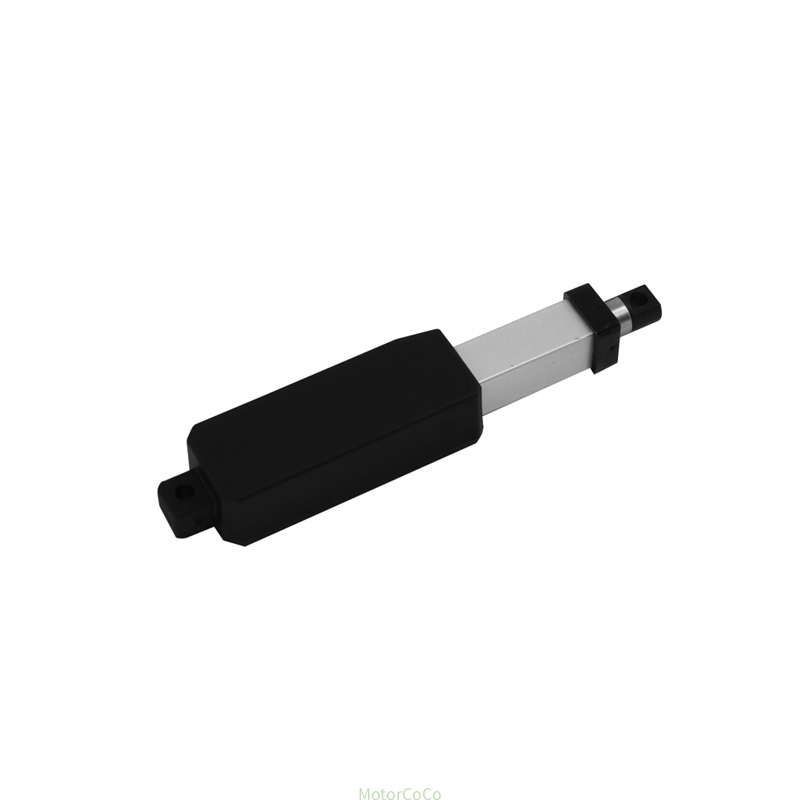

5mm/s,300N/30KG/66LBS,hall sensor position feedback,customized
Advantage
We are a well-known manufacturers of micro linear actuators in the market.offers a wide range of micro linear actuators suitable for various applications.
Compact Size: Micro linear actuators are small in size,making them suitable for applications where space is limited.
Precise Movement: These actuators offer precise and accurate movement, allowing for fine control and positioning.
High Force Output: Despite their small size, micro linear actuators can generate significant force, making them suitable for applications that require a strong pushing or pulling force.
Energy Efficiency: Micro linear actuators are designed to be energy-efficient, consuming minimal power during operation.
Easy Installation: Micro linear actuators are typically easy to install and integrate into existing systems or projects.
Durable and Reliable: These actuators are built to withstand repeated use and are known for their durability and reliability.
Versatile Applications: Micro linear actuators find applications in various industries, including robotics, automation, medical devices, aerospace, and more.
For full specifications,customization options,and dimension,please check linear actuator descripation or contact with our online engineer service.
Main technical data
| Model | LA-T8H |
| Input | 6V,12V,24V |
| Load/Force/Thrust | 300N/30KG/66LBS,customized |
| Speed | 5mm/s,0.2inch/s,customized |
| Stroke | 50MM,100MM,150MM |
| Position signal feedback | Hall sensor,customized |
| Gear material | Metal |
| Duty cycle | 25% |
| IP protection | IP54,IP65 or customized |
| Operation Temperature | -25°C to 65°C (-13°F to 149°F) |
| Color | Black |
| Controller | Power supply,wire or wireless switch,synchronous controller options |
| Mounting bracket | Standard type or customized |
| Certificate | CE,Rohs,ISO,UL |
Gear Ration&Load&Speed&Current
Gear Ration | Max Force/Load N | Noload speed MM/S | 12V max current A | 24V max current A | Customized |
| A | 300N/30KG/66LBS | 5 | 0.8 | 0.4 | Yes |

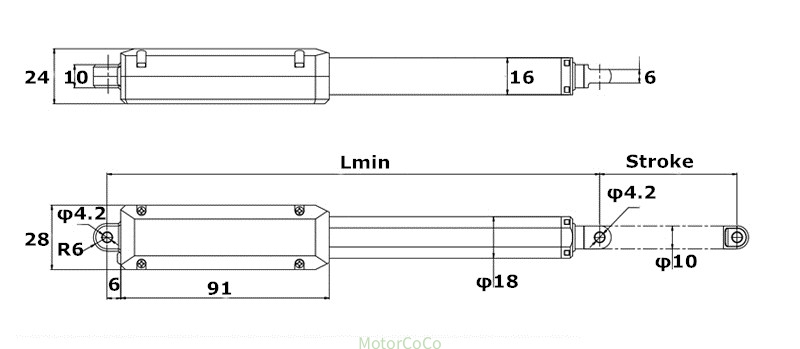

Drawing
FAQ
Lmin means when the linear actuator completely retracts,the length between the front hole and rear hole.
Lmin=110mm+Stroke. For example 50mm stroke,Lmin=110+50=160mm
Lmax means when the linear actuator completely extends,the length between the front hole and rear hole.
Lmax=Lmin+Stroke For example 50mm stroke,Lmax=160+50=210mm
There is two pcs cable,one is + and another one is -. If the power+ connects cable +,power- connects cable-,the linear actuator will extend,If the power+ connects cable -,power- connects cable +,the linear actuator will retract.
If customers want customized front and rear mounting hole size,Lmin and Lmax size,mounting degree or direction,please send technical data.
General question
1 Can you make customized stroke,Lmin,Lmax length? Yes,but we need drawing.
2 Can you make head connector with customized slot or fish eyes? Yes,but we need drawing.
3 Can you adjust end rear with 90 degree? No.
4 Can you make customzied cable connector? Yes,but we need connector photo or size.
5 Can you provide power supply or adapter or remote controller or syncrounously controller? Yes,we have wire and wireless types controller.
6 Can you provide mounting bracket? Yes.
7 Can you offer OEM serive？Yes.
How to place customized order
A Product model Number (For example LA-T8P,T8W,T8H or other model)
B Input (6V or 12V or 24V)
C Noload speed (For example 5mm/s or 50mm/s or 150mm/s or other speed)
D Load (For example 100N/10KG/22LBS or 50N/5KG/11LBS or other load)
E Stroke length (For example 2inch,50mm,4inch,100mm or other length)
F Retract length (For example 155mm or 205mm or other length)
G Cable length (For example 1M or 1.5M or other length)
H Other customized technical requirements
