40mm/s,500N/50KG/110LBS,position feedback,customized
Advantage
We are a well-known manufacturers of micro linear actuators in the market.offers a wide range of micro linear actuators suitable for various applications.
Are you looking to improve the performance and reliability of your coffee machines? Our high-precision linear actuators are the perfect solution!
Why Choose Our Linear Actuators?
Precision and Control:
Designed for precise movements, our actuators ensure consistent performance in controlling various components of coffee machines, such as brew group mechanisms, steam wands, and grinders.
Durability and Reliability:
Built with high-quality materials and advanced engineering, our actuators offer long-lasting durability and dependable operation, reducing the need for frequent maintenance.
Compact and Efficient Design:
Our actuators are designed to be compact, fitting seamlessly into the limited space within coffee machines while maintaining high efficiency and low power consumption.
Easy Installation and Integration:
Featuring a user-friendly design, our actuators are easy to install and integrate into existing coffee machine systems, minimizing downtime and installation costs.
Customizable Options:
We offer customization to meet specific requirements, including different sizes, strokes, and force capacities to suit various coffee machine models and applications.
For full specifications,customization options,and dimension,please check linear actuator descripation or contact with our online engineer service.
Main technical data
| Model | LA07 |
| Input | 24V |
| Load/Force/Thrust | 500N/50KG/110LBS,customized |
| Speed | Max 40mm/s,1.6inch/s,customized |
| Stroke | Max 300mm,12inch,customized |
| Position signal feedback | Hall sensor,customized |
| Gear material | Metal |
| Duty cycle | 10% |
| IP protection | IP54,IP65 or customiz |
| Operation Temperature | -25°C to 65°C (-13°F to 149°F) |
| Controller | Power supply,wire or wireless switch,synchronous controller options |
| Mounting bracket | Standard type or customized |
| Certificate | CE,Rohs,ISO,UL |

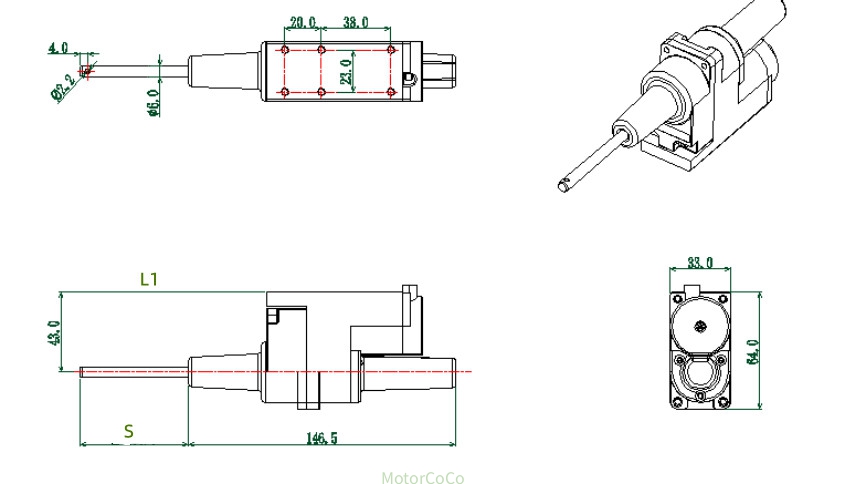

Drawing
FAQ
Lmin means when the linear actuator completely retracts,the length between the front hole and rear hole.
Lmax means when the linear actuator completely extends,the length between the front hole and rear hole.
For standard type,there is two pcs cable,one is + and another one is -. If the power+ connects cable +,power- connects cable-,the linear actuator will extend,If the power+ connects cable -,power- connects cable +,the linear actuator will retract.
If customers want customized front and rear mounting hole size,Lmin and Lmax size,mounting degree or direction,please send technical data.
General question
1 Can you make customized stroke,Lmin,Lmax length? Yes,but we need drawing.
2 Can you make head connector with customized slot or fish eyes? Yes,but we need drawing.
3 Can you adjust end rear with 90 degree? No.
4 Can you make customzied cable connector? Yes,but we need connector photo or size.
5 Can you provide power supply or adapter or remote controller or syncrounously controller? Yes,we have wire and wireless types controller.
6 Can you provide mounting bracket? Yes.
7 Can you offer OEM serive？Yes.
How to place customized order
A Product model Number (For example LA07,10,11 or other model)
B Input (6V or 12V or 24V)
C Noload speed (For example 5mm/s or 10mm/s or 20mm/s or other speed)
D Load (For example 100N/10KG/22LBS or 50N/5KG/11LBS or other load)
E Stroke length (For example 2inch,50mm,4inch,100mm or other length)
F Retract length (For example 155mm or 205mm or other length)
G Cable length (For example 1M or 1.5M or other length)
H Other customized technical requirements
