LA-T5 linear actuator
170mm/s,3500N/350KG/770LBS force,with limited switch,customized
170mm/s,3500N/350KG/770LBS force,with limited switch,customized
Advantage

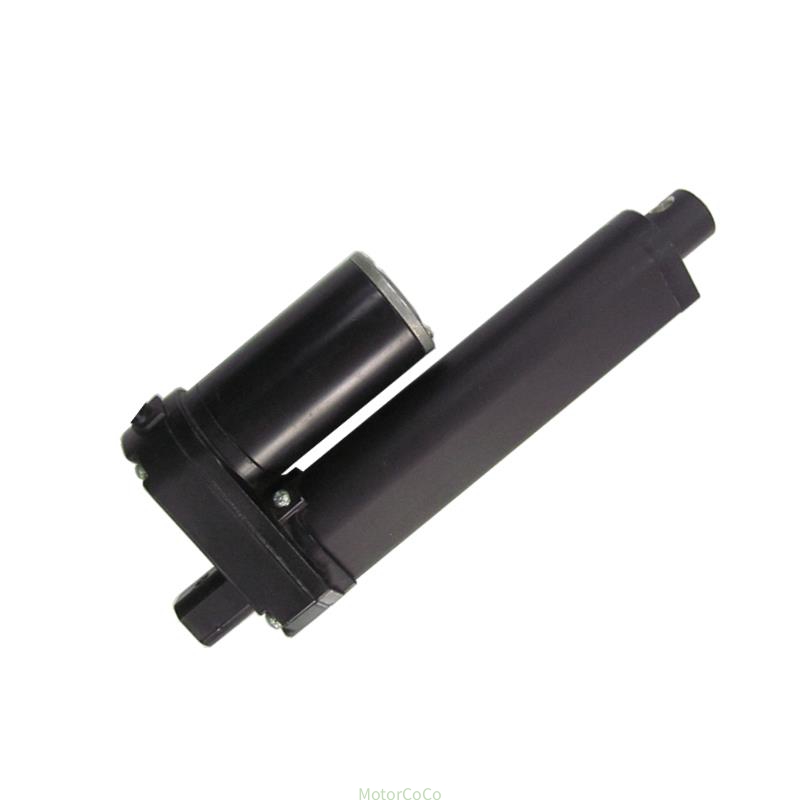

The LA-T5 Linear Actuator is designed in a compact size,made from aluminum materials and metal gear,with max 3500N/350KG/770LBS load,170mm/s,6.8inch/s speed,80inch stroke. Internal limited switch deactivate the unit once the piston has reached maximum or minimum stroke,protecting your build. The low current, medium load capacity linear actuator is ideally suited for robotics,industry and automation application.
For full specifications,customization options,and dimension,please check linear actuator descripation or contact with our online engineer service.
| Model | LA-T5 |
| Input | 12V,24V,36V,48V DC |
| Force/Thrust | Max 3500N/350KG/770LBS,customized |
| Speed | Max 170mm/s,6.8inch/s,customized |
| Stroke | Max 2000mm,80inch,customized |
| Limited switch | Build in,customized |
| Position signal feedback | Potentiometer,Encoder,Hall sensor,customized |
| Gear | Metal |
| Duty cycle | 25% |
| IP protection | IP54,IP65 or customized |
| Operation Temperature | -25°C to 65°C (-13°F to 149°F) |
| Color | Silver |
| Controller | Power supply,wire or wireless switch,synchronous controller options |
| Mounting bracket | Standard type or customized |
| Certificate | CE,Rohs,ISO,UL |
Gear Ration&Load&Speed&Current
| Gear Ration | Max Force/Load N | Noload speed MM/S | 12V max current A | 24V max current A | Customized |
| A | 3500N/350KG/770LBS | 5 | 7.0 | 3.5 | Yes |
| B | 2500N/250KG/550LBS | 10 | 7.8 | 3.9 | Yes |
| C | 1500N/150KG/330LBS | 15 | 7.6 | 3.8 | Yes |
| D | 1000N/100KG/220LBS | 20 | 7.0 | 3.5 | Yes |
| E | 750N/75KG/165LBS | 25 | 7.6 | 3.8 | Yes |
| F | 500N/50KG/110LBS | 30 | 7.6 | 3.8 | Yes |
| G | 400N/40KG/88LBS | 45 | 7.6 | 3.8 | Yes |
| H | 200N/20KG/44LBS | 70 | 7.6 | 3.8 | Yes |
| I | 100N/10KG/22LBS | 110 | 7.6 | 3.8 | Yes |
| J | 50N/5KG/11LBS | 170 | 7.6 | 3.8 | Yes |
Drawing

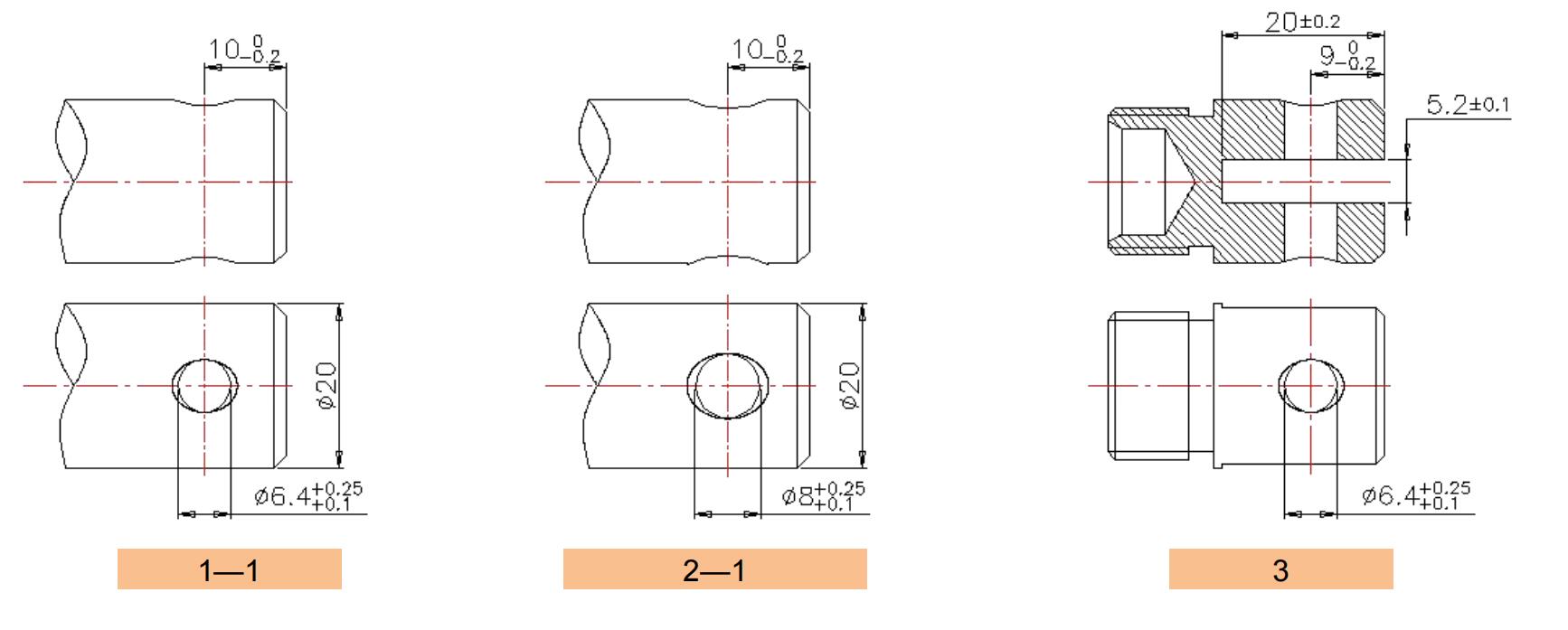

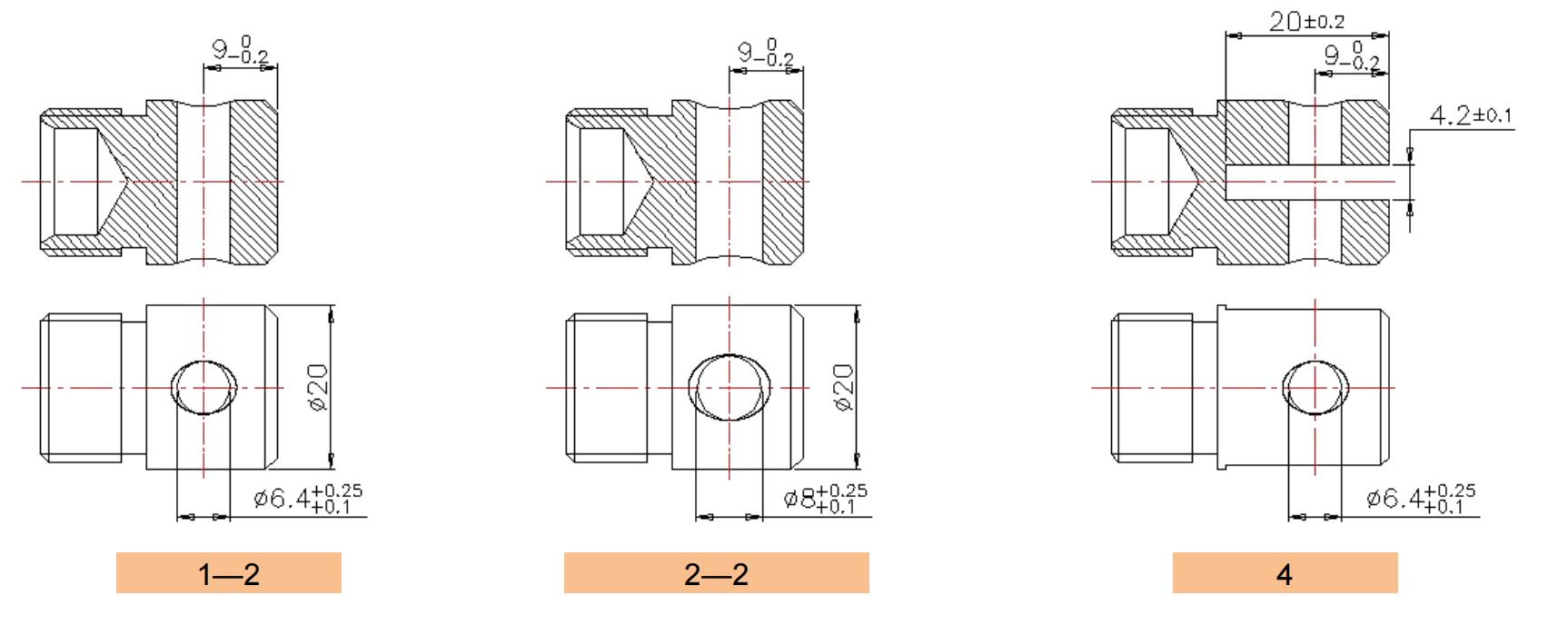

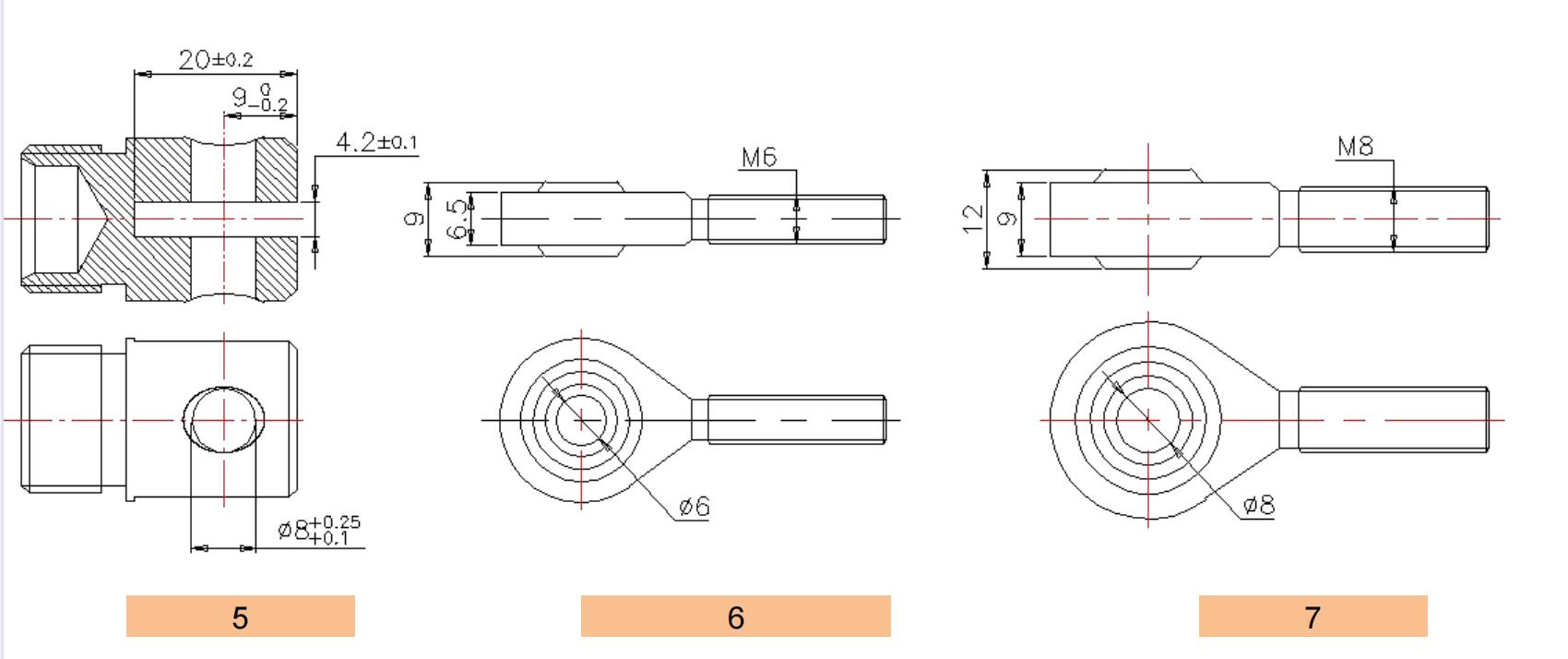

Head and tail connector options
FAQ
Lmin means when the linear actuator completely retracts,the length between the front hole and rear hole.
Lmin=120mm/4.8inch+Stroke. For example 50mm stroke,Lmin=120+50=170mm=6.8inch
Lmax means when the linear actuator completely extends,the length between the front hole and rear hole.
Lmax=Lmin+Stroke
Lmax=Lmin+Stroke For example 50mm stroke,Lmax=170+50=220mm=8.8inch
There is two pcs cable,one is + and another one is -. If the power+ connects cable +,power- connects cable-,the linear actuator will extend,If the power+ connects cable -,power- connects cable +,the linear actuator will retract.
If customers want customized front and rear mounting hole size,Lmin and Lmax size,mounting degree or direction,please leave technical data.
General question
1 Can you make customized stroke,Lmin,Lmax length? Yes,but we need drawing.
2 Can you make head connector with customized slot or fish eyes? Yes,but we need drawing.
3 Can you adjust end rear with 90 degree? Yes.
4 Can you make customzied cable connector? Yes,but we need connector photo or size.
5 Can you provide power supply or adapter or remote controller or syncrounously controller? Yes,we have wire and wireless types controller.
6 Can you provide mounting bracket? Yes.
7 Can you offer OEM serive？Yes.

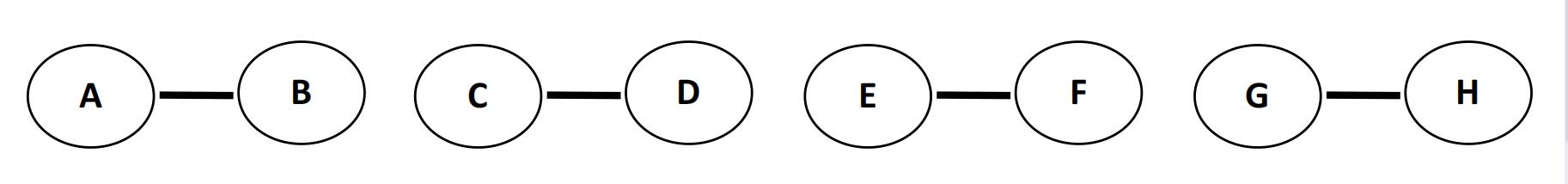

How to place customized order
A Product model Number (For example LA-T4,T5,T6 or other model)
B Input (6V or 12V or 24V or 36V or 48V)
C Noload speed (For example 5mm/s or 50mm/s or 230mm/s or other speed)
D Load (For example 1000N/100KG/220LBS or 5000N/500KG/1100LBS or other load)
E Stroke length (For example 2inch,50mm,4inch,100mm or other length)
F Retract length (For example 155mm or 205mm or other length)
G Cable length (For example 1M or 1.5M or other length)
H Other customized technical requirements
