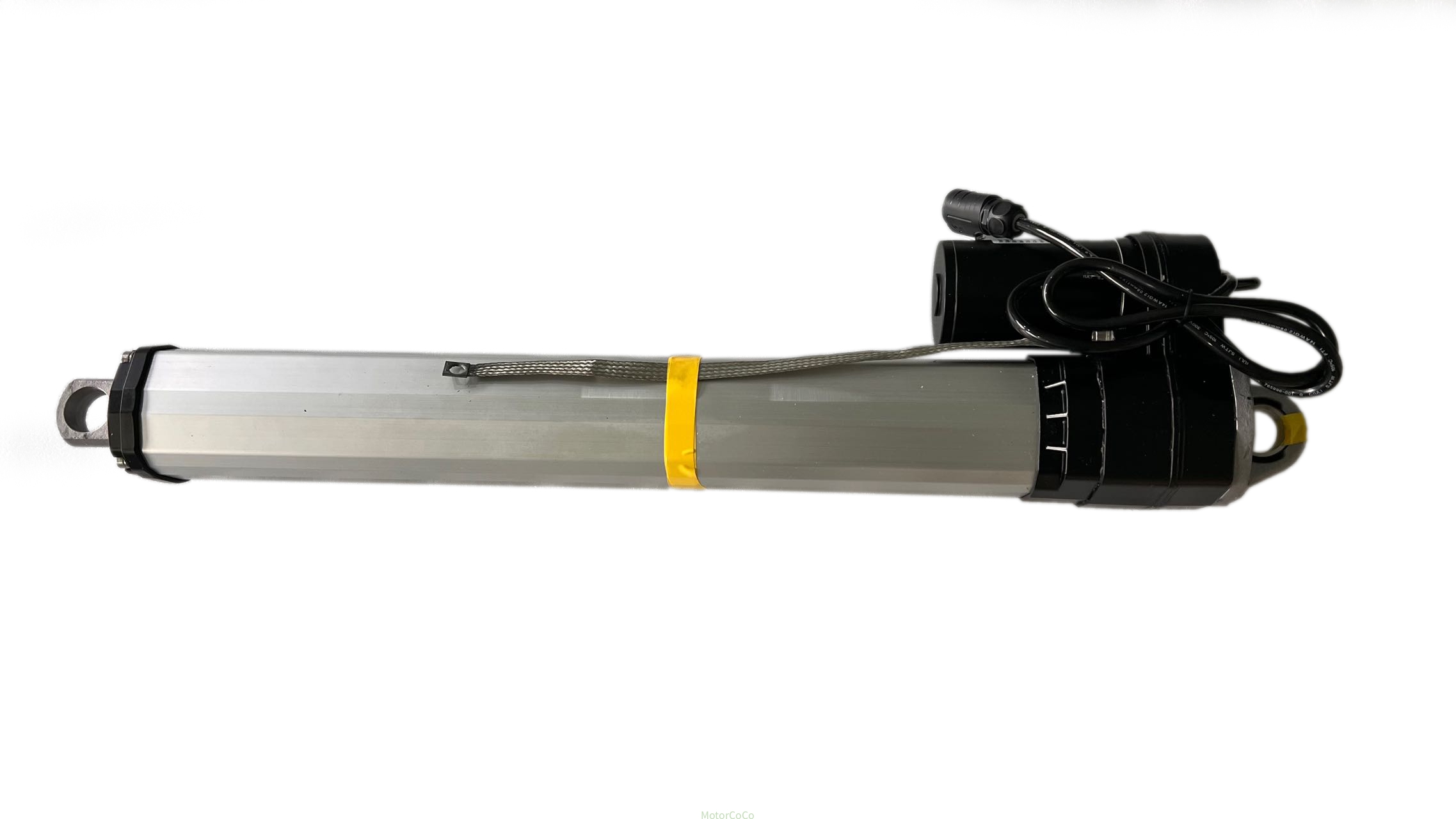

LA52 linear actuator
2mm/s,25000N/2500KG load,IP66,with limited switch,customized
2mm/s,25000N/2500KG load,IP66,with limited switch,customized
Advantage
HIGH FORCE – LA52 industry linear actuator 12V/24V/36V/48VDC model offers power and durability for applications that require dynamic linear motion and versatility. One of our strongest units and able to withstand harsh environments. The stainless-steel shaft accompanied by metal gears allows it to push and pull up to 2000 lbs,and hold up to 4000 lbs.
FEATURES – The environmental protection rating provides a versatile unit able to withstand dust,water and harsh environments. The heavy duty actuator can be with adjustable limit switches,which allows customers fully control over where to start and stop the actuator.
INDUSTRIES - Can be used in a variety of different applications,from lifting a marine hatch on a boat to being utilized in industrial machinery equipment found in the construction industry. Might be used in modern forage harvesters,combines and feeding machines.
TESTING – All our products are undergo thorough testing before they are released for sale. They are designed to work in even very harsh conditions and to tolerate washing,without damaging the finer electronics inside.
SUPERB QUALITY GUARANTEED Actuators are steady,clean,non-toxic and energy efficient. We also supply customized products to satisfy your technical requirements.
For full specifications,customization options,and dimension,please check linear actuator descripation or contact with our online engineer service.
| Model | LA52 |
| Input | 12V,24V,36V,48V DC |
| Force/Thrust | Max 25000N/2500KG/5500LBS,customized |
| Speed | 2mm/s,0.08inch/s,customized |
| Stroke | Max 3000mm,120inch,customized |
| Limited switch | Build in,customized,adjustable |
| Position signal feedback | Potentiometer,Encoder,Hall sensor,customized |
| Gear | Metal |
| Duty cycle | 25% |
| IP protection | IP54,IP65 or customized |
| Operation Temperature | -20°C to 65°C or or customized |
| Color | Black |
| Controller | Power supply,wire or wireless switch,synchronous controller options |
| Mounting bracket | Standard type or customized |
| Certificate | CE,Rohs,ISO,UL |
Gear Ration&Load&Speed&Current
| Gear Ration | Max Force/Load N | Noload speed MM/S | 12V max current A | 24V max current A | Customized |
| A | 25000N/2500KG/5500LBS | 2 | 14 | 6.5 | Yes |
| B | 20000N/2000KG/4400LBS | 2 | 13 | 6 | Yes |
| C | 15000N/1500KG/3300LBS | 2 | 14 | 6.5 | Yes |
| D | 10000N/1000KG/2200LBS | 2 | 14 | 6 | Yes |

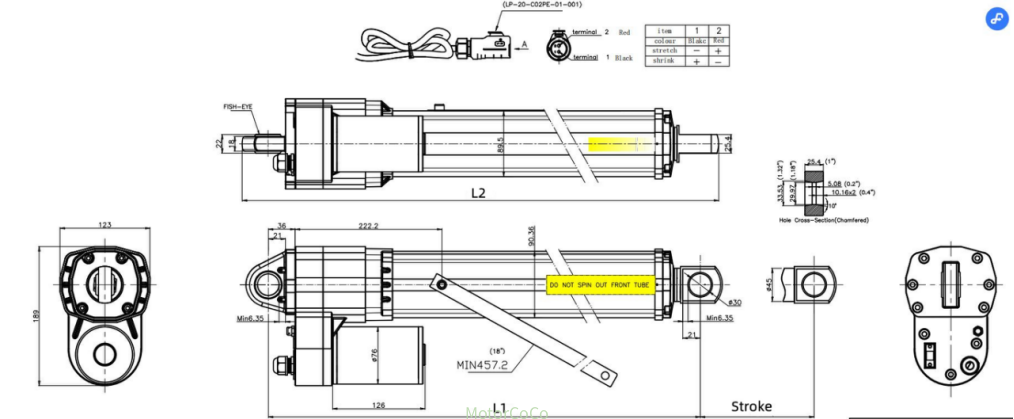

Drawing
Front and rear connector options
FAQ
Lmin means when the linear actuator completely retracts,the length between the front hole and rear hole.
L1=309mm/12.36inch+Stroke. For example 300mm stroke,Lmin=309+300=609mm=24.36inch
L2=367+stroke=367+300=667mm=26.68inch
Lmax means when the linear actuator completely extends,the length between the front hole and rear hole.
Lmax=Lmin+Stroke
Lmax=L1+Stroke For example 300mm stroke,Lmax=609+300=909mm=36.36inch
There is two pcs cable,one is + and another one is -. If the power+ connects cable +,power- connects cable-,the linear actuator will extend,If the power+ connects cable -,power- connects cable +,the linear actuator will retract.
If customers want customized front and rear mounting hole size,Lmin and Lmax size,mounting degree or direction,please leave technical data.
General question
1 Can you make customized stroke,Lmin,Lmax length? Yes,but we need drawing.
2 Can you make head connector with customized slot or fish eyes? Yes,but we need drawing.
3 Can you adjust end rear with 90 degree? Yes.
4 Can you make customzied cable connector? Yes,but we need connector photo or size.
5 Can you provide power supply or adapter or remote controller or syncrounously controller? Yes,we have wire and wireless types controller.
6 Can you provide mounting bracket? Yes.
7 Can you offer OEM serive？Yes.
How to place customized order
A Product model Number (For example LA50,LA51 or other model)
B Input (6V or 12V or 24V or 36V or 48V)
C Noload speed (For example 5mm/s or 50mm/s or 230mm/s or other speed)
D Load (For example 1000N/100KG/220LBS or 5000N/500KG/1100LBS or other load)
E Stroke length (For example 2inch,50mm,4inch,100mm or other length)
F Retract length (For example 155mm or 205mm or other length)
G Cable length (For example 1M or 1.5M or other length)
H Other customized technical requirements
