LC25
15mm/s,2000N/200KG/440LBS load,customized
15mm/s,2000N/200KG/440LBS load,customized
Advantage
MotorCoCo lifting columns are intelligent,quiet and beautiful linear motion devices. They offer smooth and precise movement, allowing for easy adjustment of height or position.
lifting column consists of outner housing,inner motor,worm gear,lead screw and other spare parts. The lifting column goes up or down movement. There are two stage,three stage,four stage,even five or six stage lifting columns. The more stages,the closed height will be shorter. The appearance is square or round or elliptic.
Telescopic lifting columns are commonly used in various industries, such as automotive, furniture, medical, and industrial applications. They are often found in adjustable desks, height-adjustable tables, hospital beds, ergonomic workstations, and lifting platforms.

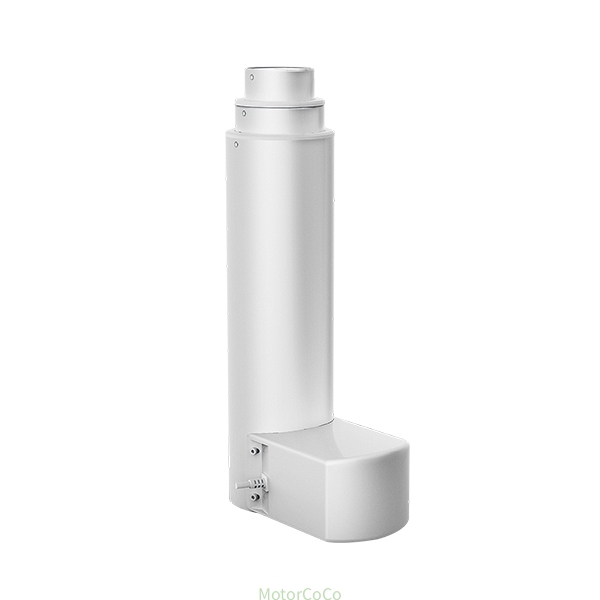

LC25 is 3 stage,2000N/200KG/440LBS force,15mm/s speed.
Do you know we can customize lifting column to meet your requirements? Send us inquiry now!
| Model | LC25(3 stage) lifting column |
| Input | 24V |
| Load/Force/Thrust | 2000N/200KG/440LBS |
| Speed | 15mm/s,0.6inch/s |
| Stroke | 400mm,customized |
| Position signal feedback | Hall sensor,customized |
| Top/bottom mounting plate size | Customizable,needs drawing |
| Control system | Customizable,Power supply,wire or wireless switch,synchronous controller options |
| 3 stage height | With drawing,customizable |
| Noise level | 48dB |
| Duty cycle | 25% |
| IP protection | IP54,IP65 or customized |
| Operation Temperature | -20°C to 65°C or customized |
| Color | Silver |
| Cable length | 1000MM,40inch,or customized |
| Certificate | CE,Rohs,ISO,UL |
Gear Ration&Load&Speed&Current
| Gear Ration | Max Force/Load N | Noload speed MM/S | 29V max current A | Customized | |
| 10A | 2000N/200KG/440LBS | 315 | 5.1 | Yes | |

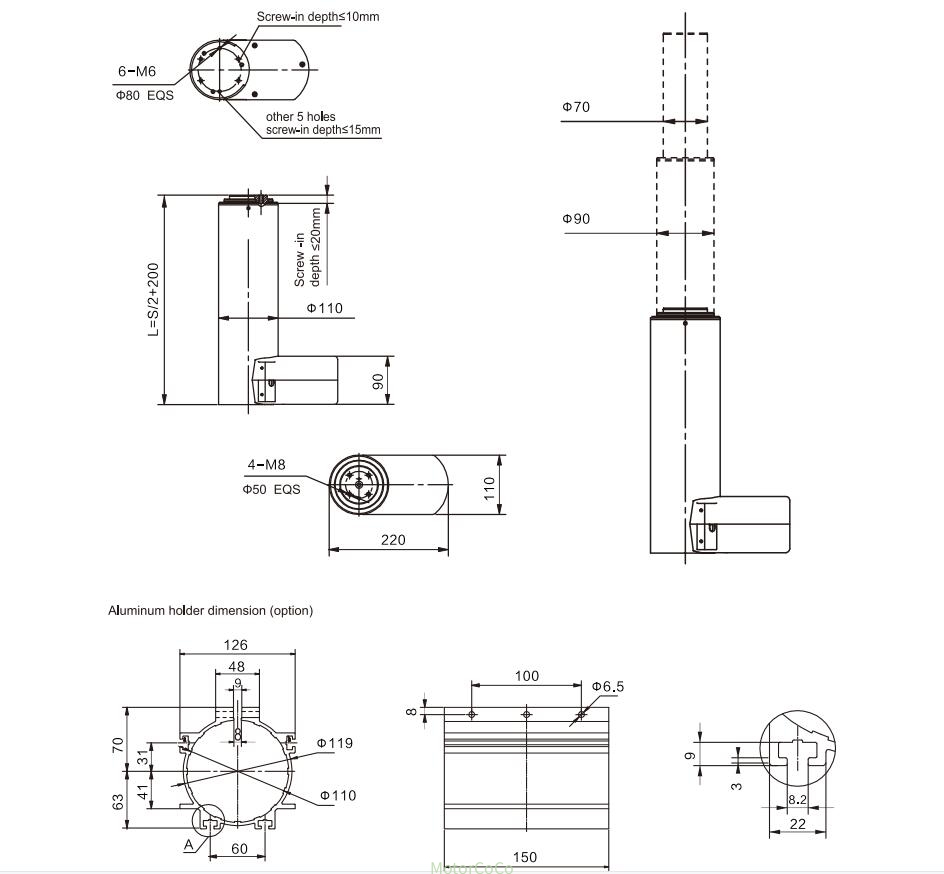

Drawing
LC25 three stage
The closed height of a telescopic lifting column refers to its minimum overall length when fully retracted or collapsed.
This measurement is important to consider when determining if the lifting column will fit within a specific space or application.
The open height of a telescopic lifting column refers to its maximum extended or raised position when fully extended.
This measurement is important to determine the maximum height that can be achieved using the lifting column.
Lmin 400mm stroke 400mm Lmax 800mm
FAQ
Lmin means when the lifting column completely retracts,the height between the top plate and bottom plate.
Lmax means when the lifting column completely extends,the height between the top plate and bottom plate.
If customers want customized top and bottom mounting hole size,Lmin and Lmax size,please send drawing.
General question
1 Can you make customized stroke,speed,load,Lmin,Lmax height? Yes,but we need drawing.
2 Can you make customized color? Yes,but it needs MOQ requirements.
3 Can you make customzied cable connector? Yes,but we need connector photo or size.
4 Can you provide power supply or adapter or remote controller or syncrounously controller? Yes,we have wire and wireless types controller.
5 Can you provide mounting bracket spare parts? Yes.
6 Can you offer OEM serive？Yes.
How to place customized order
A Product model Number (For example LC10,LC25)
B Input (6V or 12V or 24V or 36V or 48V)
C Noload speed (For example 5mm/s or 10mm/s or 15mm/s or other speed)
D Load (For example 1000N/100KG/220LBS or 2000N/200KG/440LBS or other load)
E Stroke length (For example 20inch,500mm,40inch,1000mm or other length)
F Lmin height (For example 600mm or 800mm or other height)
G Cable length (For example 1M or 1.5M or other length)
H Other customized technical requirements
