Lift 75KG/165LBS TV,up to 95inch TV,customized
Advantage
An electric TV lift is a type of TV lift that operates using an electric motor. This motorized mechanism allows for convenient and automated control of the TV lift system. With an electric TV lift, you can easily raise or lower your television with the push of a button or through a remote control. Besides,this motorized TV lift is designed to keep your TV hidden and out of sight while not in use. This eliminates the need for manual effort and provides a smooth and hassle-free experience. Electric TV lifts are commonly used in homes, offices, conference rooms, and other spaces to create a sleek and space-saving setup for televisions.
Our TV lift systems can support up to 100KG/220lbs TV,and can lift TV's as large as 95”,up to 800x800 VESA. Included in each set is a wireless remote, control box,memory position,mounting brackets and other accessary.
For full specifications,customization options,and dimension,please check linear actuator descripation or contact with our online engineer service.
Main technical data
| Model | OK-TL02 |
| TV Size Compatibility | 30" - 95",or customized |
| VESA size | standard or customized |
| Input | 110-220V AC 50/60HZ |
| Lift capacity | Max 75KG/165LBS |
| Speed | 25mm/s,1inch/s,customized |
| Stroke | 650mm,900mm,customized |
| Mini height | 575mm,725mm |
| Max height | 1225mm,1635mm |
| Limited switch | Build in,customized |
| Controller options | Wire or wireless remote |
| Wireless Remote Range | Up to 120 ft or 36.5Meters |
| Frame materials | Aluminum with Steel Brackets |
| Duty cycle | 10% |
| IP protection | IP20 |
| Operation Temperature | -26°C to 65°C (-15°F to 150°F) |
| Color | Black |
| Mounting bracket | With,or customized |
| Certificate | CE,Rohs,ISO,UL |

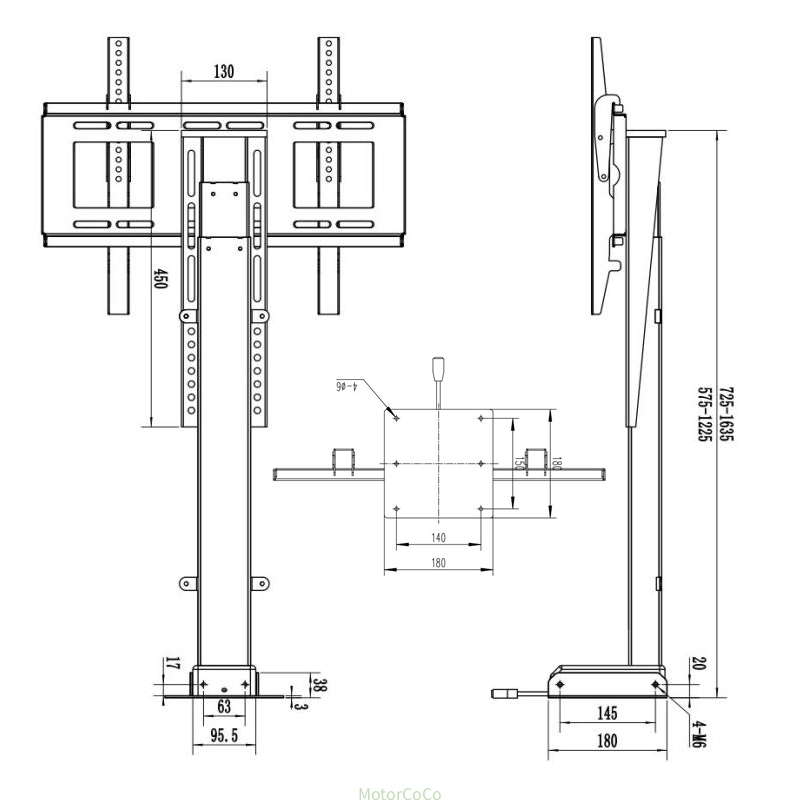

Drawing
FAQ
Lmin means when the tv lfits completely retracts,the height between the top and bottom plate.
Lmin=575mm/23inch,725mm/29inch
Lmax means when the tv lifts completely extends,the height between the top and bottom plate.
Lmax=1225mm/49inch,1635mm/65.4inch
General question
1 Can you make customized stroke,Lmin,Lmax height? Yes,but we need drawing.
2 Can it be fixed in ceiling? Yes,but we need drawing.
3 Can you provide power supply or adapter or remote controller or syncrounously controller? Yes,we have wire and wireless types controller.
4 Can you provide mounting bracket? Yes.
5 Can you offer OEM serive？Yes.
How to place customized order
A Plug type( EU,UK,US,AU and so on)
B Stroke size (400mm or 500mm or 600mm or other options)
C Other customized technical data
